JS型橡膠隔振器由金屬件及橡膠粘結而成,其彈性體采用軸對稱環狀剪刀型結構,本系列產品分四種尺寸結構,八種承載規格,軸向承受額定載荷從10-12880kg ,額定載荷下靜變形在3-12mm范圍內,相應固有頻率在5-11 HZ范圍,阻尼比大于0.05.

該隔振器外形美觀，結構緊湊,與同類型相同規格隔振器相比,結構尺寸小,重量輕,安裝更換方便,工作安全可靠,能在-5°C-+ 5°C范圍內保持正常工作。

該隔振器對1000r/min以上回轉及往復機械振動的隔離具有良好隔振效果,適于水泵、風機、冷卻塔、空壓機、柴油機、冷卻機等機械設備的振動隔離及儀器儀表防振、防沖擊。本產品也適用于航空、船舶及機車中各類設備的振動隔離和防護。

JS rubber vibration isolator comprises of metal parts and rubble through cohering.its elastic body adopts the axisymmetric and ring shear structure.it has four-size structures and eight-load specifications.Its rated axial loadis 10-12880kg, static deformation scope under rated load is 3-12 mm, natural frequency is 5-11 HZ,danping ration is bigger than 0.05.

It is of beautiful appearance and compact structure.compared with the similar- type and simila r- specificationvibration isolatore,its size is smaller,weight is lighter, installation and replacement is more convenient and it is safer and more reliable.It operates under -5*C-+5*C.

It has good effect for the vibration isolation of over 1000r/min rotary and reciprocating moving,applied in the vibration isolation of mechanical equipments such as pump, fan,cooling tower,air compressor,diesel engine and cooler,the vibration and shock resistance of instruments and meters, as well as the vibration isolation and protection of various equipment in airplane,vessel and locomotive.

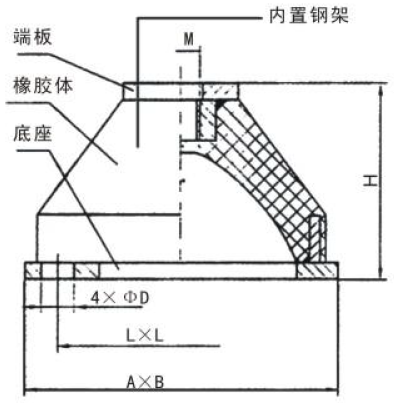

JS型橡膠剪切隔振器主要性能參數表及外形安裝尺寸:

Table of main performance parameters and installation dimensions for JS Rubber shear shock isolator:
