FZ型浮筑隔振隔音墊，它是一種新型天然橡膠墊，它在橡膠墊的兩面有四個不同直徑和不同高度的圓臺，分別交叉配置，當FZ型隔振隔音墊在載荷作用下，較高的凸圓臺受壓變形，中間凹陷較低的圓臺尚未受到壓時，其中間部分受載而彎成波浪形，振動能量通過交叉凸和中間彎曲波來傳遞，它能較好的分散并吸收任意方向的振動，當受壓時，中間凹陷面的小孔也起空氣阻尼減振性能。由于圓凸面斜向地被壓縮，在使用中無須緊固措施，既可防止水泥地臺滑動，承載越大，越不易滑移。

此FZ型浮筑隔振隔音墊的設計形成從德國技術而來，已有同類型產品在杭州大劇院中使用，效果非常理想。

FZ型浮筑隔振隔音墊安裝施工非常方便，可以任何形狀交叉楔口結合。在特殊情況下，裝配前在楔形凹凸槽溝處各刷上一層粘接劑，然后拼接成任何大小面積任何形狀的整體浮筑隔振隔音板平面，且具有不滲漏的特點。

FZ Floating shock and sound insulation cushion is a kind of natural rubber cushion.On each of its two sides there are four convexes of different diameters and heights which locate in a crisscross manner. When the FZ shock and sound insulation cushion bears loads,the higher convexes are deformed under the pressure and the lower ones in the middle do not bear loads. The middle part is bent to be in the shape of wave under the pressure, so the vibration energy is transferred through crisscross convexes and middle flexural wave.Therefore, it can disperse and absorb vibrations in any direction. In case of pressure, small holes on the middle concave also perform the function of air-damping shock absorption.The round convexes are compressed to slant, so no fastening measures are necessary during use. It can prevent cement platform sliding. It is not prone to sliding with greater load.

FZ型產品組合安裝示意圖:

Diagram of assembling and installing FZ products

FZ型浮筑隔振隔音墊圖例

(專利號: ZL 2011 03 0297118.2)

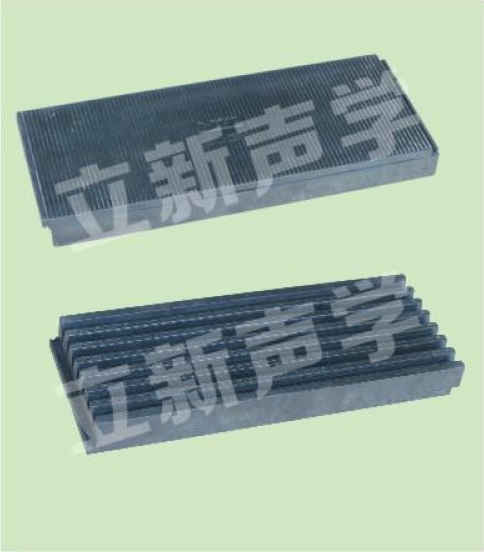

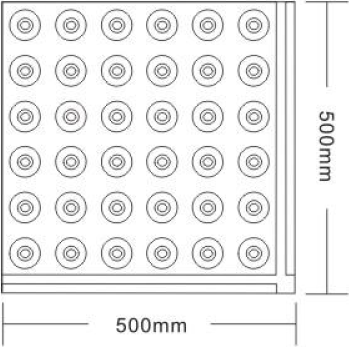

FZ型浮筑隔振隔音墊正面

FZ型隔浮筑振隔音墊反面

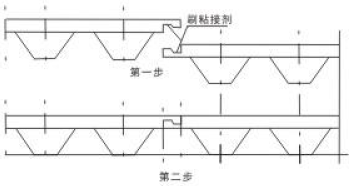

裝配方法詳見圖

FZ型浮筑隔振隔音墊側剖面

FZ型浮筑隔振隔音墊接口圖

FZ型浮筑隔振隔音墊施工方法實例圖:

Figure of example of FZ floating shock and sound insulation cushion construction methods

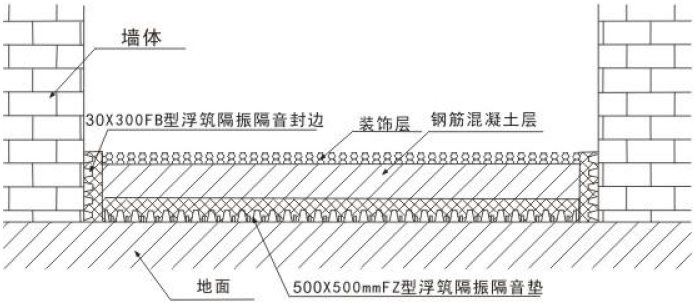

樓板浮筑隔振圖

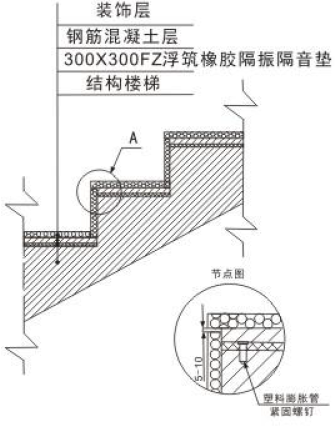

樓梯浮筑隔振圖

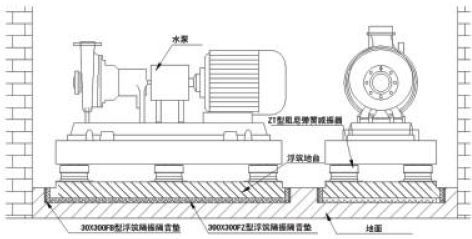

臥式水泵二級減振整體圖(點鋪式)

注:鋼筋混凝土浮筑地臺必須在正規廠家指導下進行

Note: The reinforced concrete floating platform must be conducted under guidanceof regular manufacturer.

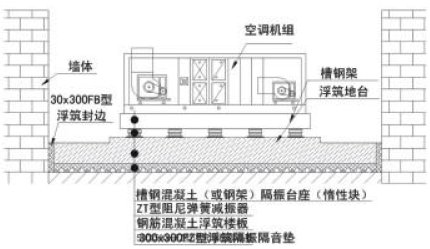

空調機組二級示意圖(滿鋪式)

注:鋼筋混凝土浮筑地臺必須在正規廠家指導下進行

Note: The reinforced concrete floating platform must be conducted under guidance of regular manufacturer.

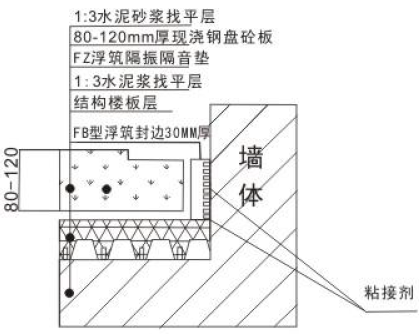

節點圖:

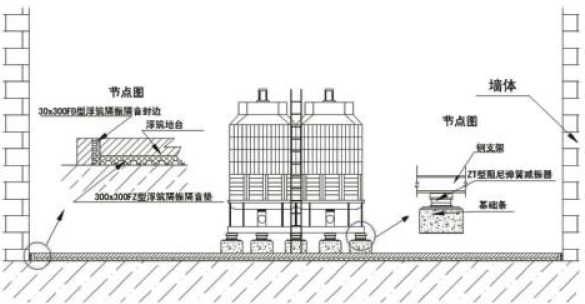

冷卻塔二級減振整體圖(滿鋪式)

注:鋼筋混凝土浮筑地臺必須在正規廠家指導下進行。

說明:浮筑隔振隔音樓板必須在專業廠家指導下施工

Note: the floating shock and sound insulation floorslabs must be constructed under guidance of professional manufacturer.

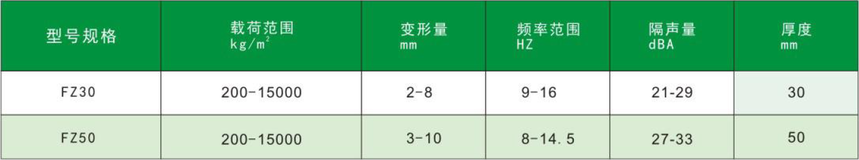

性能表:

Performance table:

注:以上浮筑層施工方法已申請專利,仿冒必究!

Note: the patent has been applied for the above floating construction methods. Counterfeits must investigate!

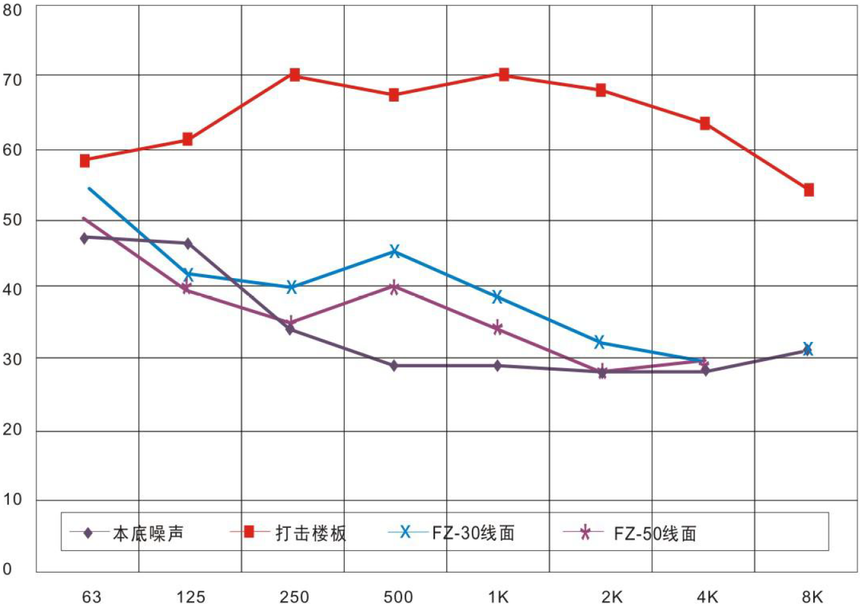

FZ型浮筑隔振隔音墊敲打性能曲線圖:

Graph of beating performance of FZ Floating shock and sound insulation cushion

產品注意問題:

Points for attention:

FZ型浮筑隔振隔音墊不可以用普通的橡膠或平面橡膠代替。普通橡膠易老化、易碎、長時間后基礎會下沉，從而導致整個管道系統崩潰。平面橡膠無隔振性能。

FZ floating shock and sound insulation cushion can not be replaced by ordinary rubber or plane rubber. The ordinary rubber is prone to aging and crisp and the foundation will cave in after using for a long time and thus causing breakdown of the whole piping system.The plane rubber does not have the feature of shock isolating.

二.滿鋪式和點鋪式浮筑隔振隔音做法，必須要在專業生產廠家指導下進行施工，切不可胡亂作為。

The fully - spreading practice and the practice of spreading cushions in specified points must be carried out under guidance of professional manufacturer. No action is allowed without authority.

三.FZ型浮筑橡膠隔振隔音墊和FB型浮筑封邊的原材料，必須耐油、耐老化、耐高溫、耐腐蝕、天然膠硫化后硬度必須控制在最佳性能點。

The raw materials of FZ floating shock and sound insulation cushion and FB floating edge banding must be oil-proof, aging-resistant,high- temperature resistant, and corrosion - resistant, and the natural rubber hardness must be controlled to ensure the best performance after curing.

以上民用建筑動力設備浮筑隔振隔音設計，隔振率達到95%以上，對于現階段在各醫院、酒店、公寓樓等地方出現的因振動引起的各種事務，都可以直接處理。

在高層的中心設備房中使用，馬上可以有效解決上下以及左右房間的振動噪音。

As to the floating shock and sound insulation designs for power equipments in civil buildings, the shock isolation rate is up to 95%，which can be directly used to deal with various issues caused by vibration in hospitals, hotels, and apartments.

Used in central equipment room in a high-rise building,they can immediately reduce the vibration noises transmitted into neighboring rooms with high efficiency.

建議滿鋪式隔音使用在以下場所為特別理想:

It is recommended to use fully-spreading sound insulation design in the following places:

一.廣播、影視、錄音、播音、演播廳等的樓面隔振隔音。

Floor shock and sound insulation in broadcasting studio, film and television studio, recording studio, studio and television studio.

二.各類機房、變頻設備房等樓隔振隔音。

Building shock and sound insulation in various machine rooms and frequency conversion equipment rooms.

三.醫院核磁共振房、各類試驗房等樓面隔振隔音。

Floor shock and sound insulation in hospital NMR room and various testing rooms.

四.歌舞廳、樂隊房、武術館、體育館、劇院等樓面隔振隔音。

Floor shock and sound insulation in song and dance hall, band room, Martial Art Studio, gymnasium and theater.

五.總統套房、高級賓館、會議房等樓面隔振隔音。

Floor shock and sound insulation in presidential suite, high-class hotels and meeting rooms.

注:此隔振隔音墊可根據實際需要，任意切割大小，可耐酸、耐油、耐堿、防腐、防霉、防濕、防老化、阻燃、耐溫為-50°C--80C。

Note: The shock and sound insulation cushion can be cut to any size as required. It is acid-proof, oil-proof, alkali-proof, anti-corrosion,mould-proof, damp-proof, aging-resistant, flame retardant, and application temperature ranges from -50C to 80C.
