FB型浮筑隔振隔音封邊由天然合成橡膠通過高溫硫化壓模而成，它根據橡膠動力，橡膠阻尼和空氣阻尼等特性研制成功的具有優越減振隔音效果的新型產品。產品結構合理，每一處都為隔振隔聲效果而設計，從而達到最佳性能。

此隔音墊施工方便，它特為FZ型浮筑隔振隔音墊施工時的側向隔振隔音而配套設計。

FB Floating shock and sound insulation edge banding is made from natural rubber in high-temperature curing pressing dies. It is a new product with excellent shock absorbing and sound insulation effects, which is successfully developed based on features of rubber dynamics, rubber damping and air damping. The product is designed with reasonable structure to achieve the best performance.

The construction of the sound insulation cushion is easy. It is specially designed for the side shock and sound insulation in construction of FZ floating shock and sound insulation cushion.

產品性能表:

Product performance table:

1.阻尼比: 0.1~0.16 工作溫度: -18C-75°C 2.此墊特別適用于墻體側向隔振

FB型浮筑隔振隔音封邊圖例:

Figure of FB Floating shock and sound insulation edge banding:

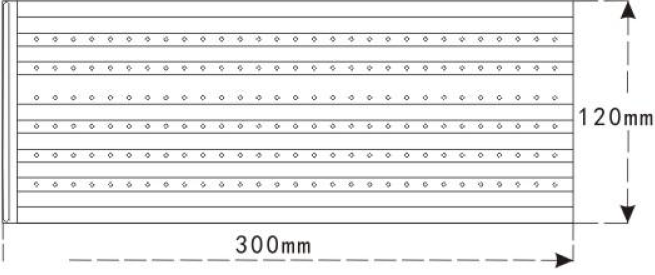

FB型浮筑隔振隔音墊正面

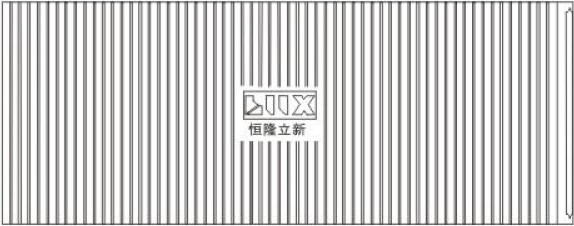

FB型浮筑隔振隔音墊反面

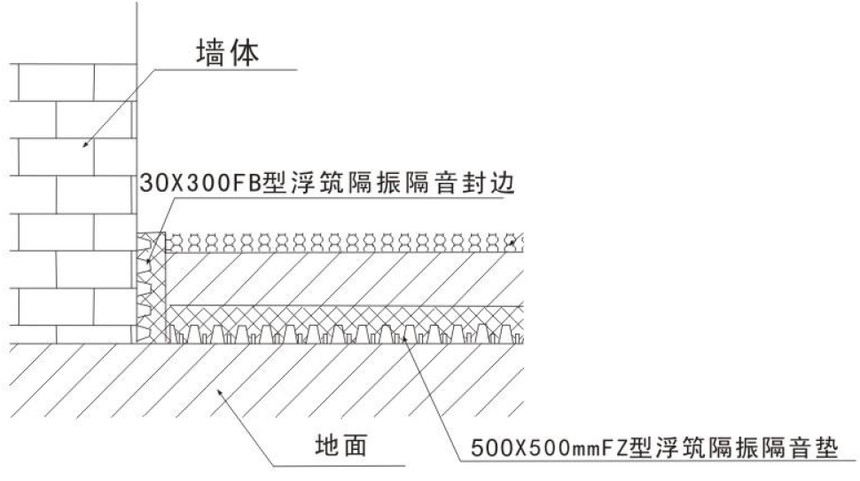

FB型浮筑振隔音墊側連接圖

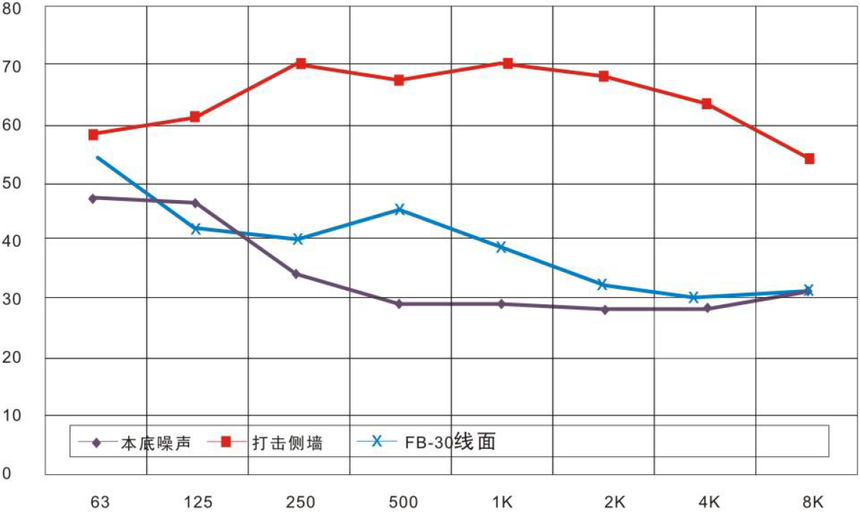

FB型浮筑隔振隔音封邊側向敲擊性能曲線圖:

Graph of side beating performance of FB Floating shock and sound insulation edge banding

現場安裝實例圖:

Figure of example field installation

說明:1. FB型浮筑隔振隔音墊安裝施工，必須在專業廠家指導下。

2. FB型浮筑隔振隔墊，切不可用普通橡膠材料的制作和替代，上面柔性防水連接封口為硅膠膏。

Note: 1.the floating shock and sound insulation floorslabs must be constructed under guidance of professional manufacturer.

2. FB Floating shock and sound insulation edge banding can not be made from or replaced by ordinary rubber. The flexible waterproof connection seal is made from silicone rubber.
