在建筑等行業中,設備或管道需要吊裝的很多,因設備產生的振動影響環境或者外來的振動影響設備的情況不少。DH系列吊式阻尼彈簧隔振器是根據用戶需要和工程設備吊裝的實際需要而開發的產品。該產品具有阻尼比大、自振頻率低、安裝方便、對固體傳聲有明顯的降噪效果,對于各種大小設備及管道的吊裝普遍適用。

In the industries such as construction, many equipments or pipelines require hoisting,as the vibration from equipment may influence environment or the out-side vibration may influence equipment, DHfully- enclosed suspend damping spring shock absorber is a product developed according to the customers demands and the actual needs of equipment hoisting. it has the features such as biggerdamping ratio, low natural frequency,convenient installation and obvious isolation effect for solid- borne sound transmission,so it is applicable to the hoisting of various large

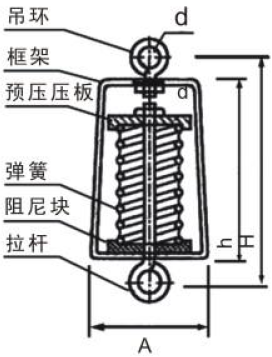

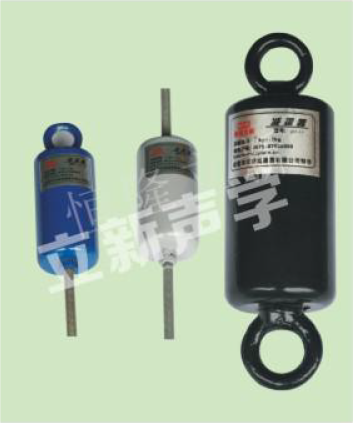

封閉式減振器示例圖

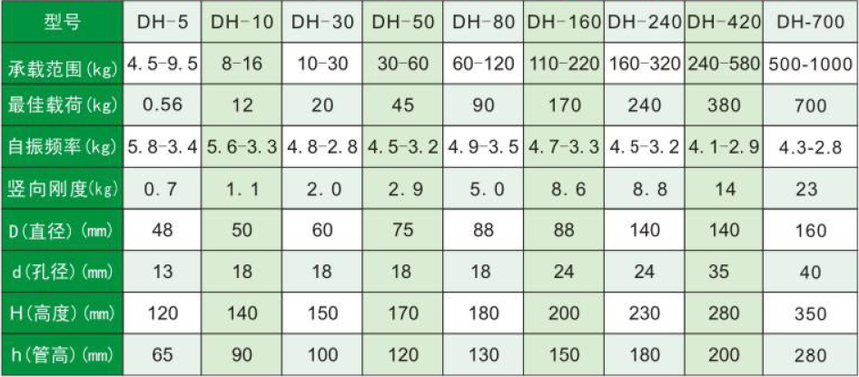

封閉式減振器技術特性參數表:

Table of technical features and parameters of enclosed absorber:

注:減振器形狀大小，可根據安裝實際需要，任意定做。

Note: Absorber shapes and dimensions can be customized according to practical installation demands.

安裝說明:

Installation instructions:

1、設備超過1.5米時或重量超過1000公斤時,隔振器應加6個以上,以增加設備在動態情況下的穩定性能。

If equipment length exceeds 1.5m or its weight exceeds 1000kg, more than 6 vibration isolators shall be added in order to en hance the stability performance of equipment upon moving.

2、彈簧吊架應在額定載荷范圍內使用,不允許超載。彈性托架安裝前調整支撐桿的高度,使托架支承面與管道底面高度保持一致,彈簧托架和彈性吊架安裝時,應調整好間距,使各個吊架的載荷盡可能一致。

Spring hanger shall be used in the rated load scope, overload is not permitted.Before installing elastic support, the height of supporting rod shall be adjusted to keep the bearing surface of support and the pipeline bottom surface in the same height. Upon installing spring hanger and elastic support , their distance shall be adjusted well to make load of each hanger same as far as possible.

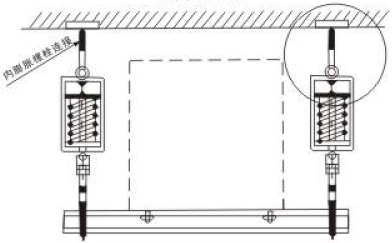

安裝實例:

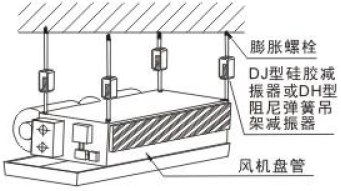

風機盤管吊裝
