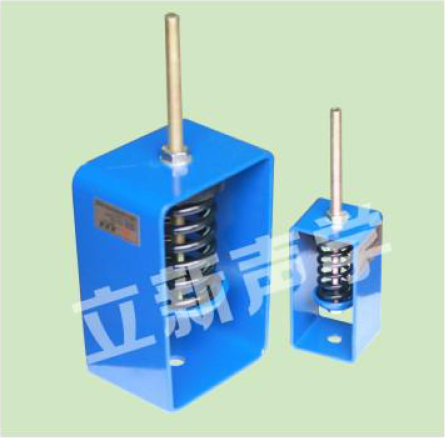

HS開口型吊式阻尼彈簧減振器

HS Open-type hanging damping spring absorber

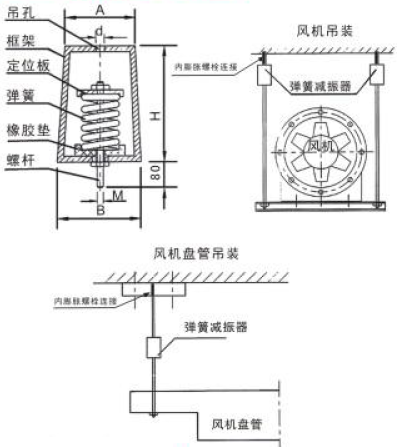

HS型阻尼彈簧減振器在DH型減振器設計上更具先進,采用鋼彈簧與阻尼橡膠串聯式組成減振降噪元件。對風機盤管、風管、氣管、水泵、制冷機組等動力設備進行隔振,尤其對固有傳聲具有明顯的降噪效果,安裝也更為先進，上孔可自由調節高度，當設備重量不均勻時,彈簧螺栓可安全調節預壓。

It is more advanced in design than DH spring shock absorber,Its vibration and noise reducing component comp - rises of steel spring and damping rubber in series connection , It can isolate the vibration for the power equipments such as fan coils,pipes, pumps and refrig - eration units,especially having the obvious isolation effect for solid - borne cound transmission , Its installation is moreadvanced ; the height of upper hole can be freely adjusted; when the equipment weight is not even, spring bolt may adjust the spring pre-load.

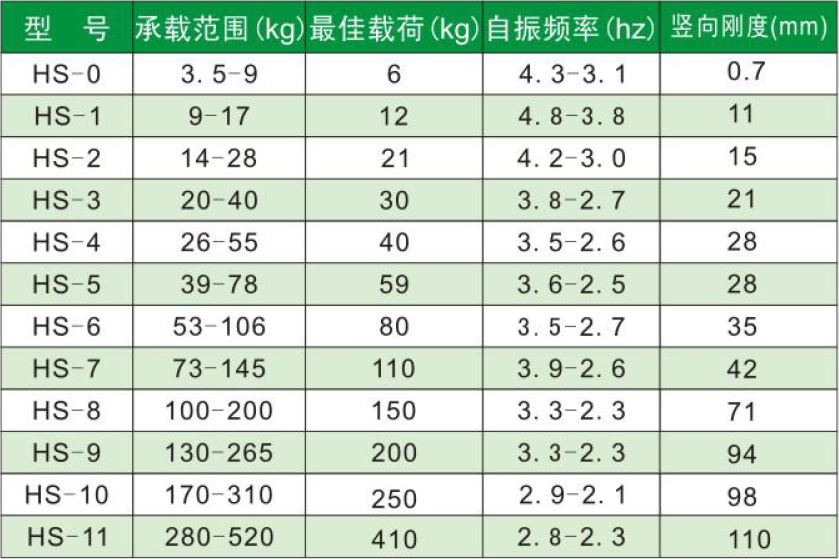

開口阻尼彈簧減振器技術特性參數表:

Table of technical features and parameters of open-type absorber:

注:減振器形狀大小，可根據安裝實際需要，任意定做。

Note: Absorber shapes and dimensions can be customized according to practical installation demands.

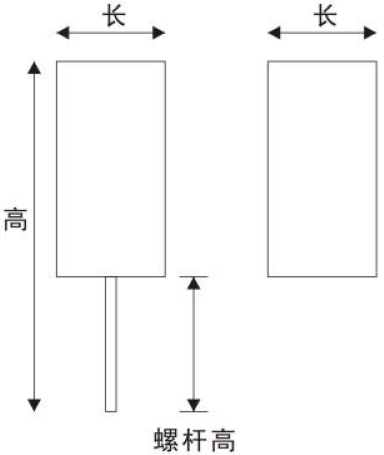

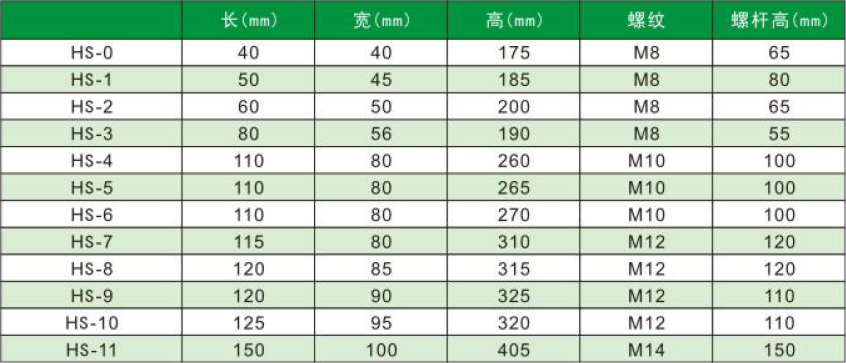

產品尺寸表:

Product dimension table:

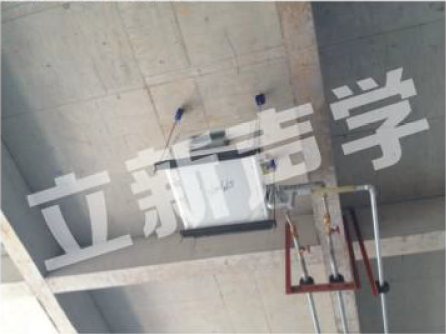

現場安裝實例圖:
